Liman Metal Steel Structures and Crane Systems
Electric Crane Solutions for Factories and Warehouses
Liman Metal provides industrial solutions with rope-type electric crane systems that enable safe, precise and efficient handling of heavy loads. Widely used in heavy industry, production facilities and warehouse areas, these systems deliver high performance with powerful motor structures and durable rope mechanisms. Designed specifically for each project, rope-type cranes are manufactured in different capacities and operating conditions.
Rope-type electric crane systems allow controlled lifting of heavy loads, especially in bridge crane and gantry crane applications. With an engineering-focused approach, Liman Metal handles all stages including project design, manufacturing and installation in a fully integrated manner. Produced with a strong focus on occupational safety and long service life, these systems provide reliable solutions that improve operational efficiency for businesses.

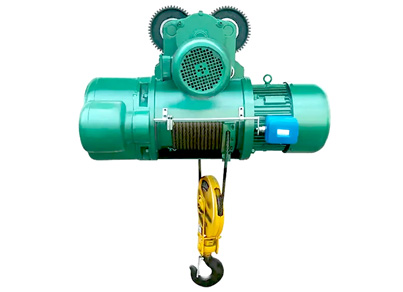

1 Ton Electric Hoist
| Lifting Capacity | : | 1 Ton |
| Lifting Height | : | 9 meters |
| Wire Rope Diameter | : | 8 mm |
| Motor Power | : | 1.5 kW |
| Power Supply | : | 380 V |
| Lifting Speed | : | 8 m/min |
| Lifting Speed Type | : | Single speed |
| Trolley Travel Speed | : | 20 m/min |
| Hook Block | : | Single sheave |
| Travel Motor Power | : | 0.2 kW |

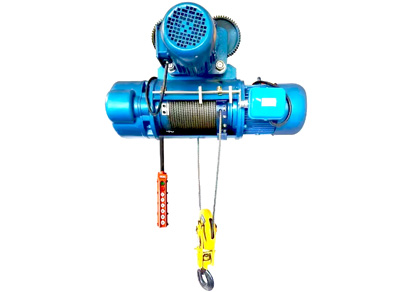

2 Ton Electric Hoist
| Lifting Capacity | : | 2 Ton |
| Lifting Height | : | 9 meters |
| Wire Rope Diameter | : | 10 mm |
| Motor Power | : | 3 kW |
| Power Supply | : | 380 V |
| Lifting Speed | : | 8 m/min |
| Lifting Speed Type | : | Single speed / Dual speed |
| Trolley Travel Speed | : | 20 m/min |
| Hook Block | : | Single sheave |
| Travel Motor Power | : | 0.4 kW |

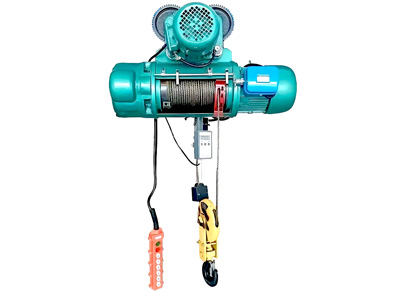

3 Ton Electric Hoist
| Lifting Capacity | : | 3 Ton |
| Lifting Height | : | 9 meters |
| Wire Rope Diameter | : | 12 mm |
| Motor Power | : | 4.5 kW |
| Power Supply | : | 380 V |
| Lifting Speed | : | 8 m/min |
| Lifting Speed Type | : | Single speed / Dual speed |
| Trolley Travel Speed | : | 20 m/min |
| Hook Block | : | Single sheave |
| Travel Motor Power | : | 0.4 kW |

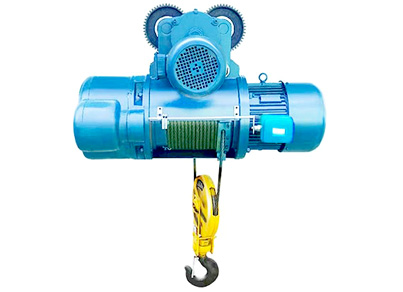

5 Ton Electric Hoist
| Lifting Capacity | : | 5 Ton |
| Lifting Height | : | 9 meters |
| Wire Rope Diameter | : | 14 mm |
| Motor Power | : | 7.5 kW |
| Power Supply | : | 380 V |
| Lifting Speed | : | 8 m/min |
| Lifting Speed Type | : | Single speed / Dual speed |
| Trolley Travel Speed | : | 20 m/min |
| Hook Block | : | Single sheave |
| Travel Motor Power | : | 0.8 kW |

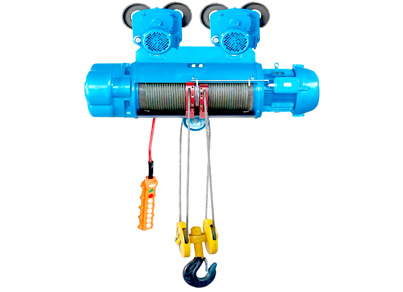

10 Ton Electric Hoist
| Lifting Capacity | : | 10 Ton |
| Lifting Height | : | 12 meters |
| Wire Rope Diameter | : | 14 mm |
| Motor Power | : | 13 kW |
| Power Supply | : | 380 V |
| Lifting Speed | : | 3.5 m/min (Fast) 0.35 m/min (Slow) |
| Lifting Speed Type | : | Dual speed |
| Trolley Travel Speed | : | 20 m/min |
| Hook Block | : | Double sheave 4/2 |
| Travel Motor Power | : | 2 × 0.3 kW |
Our hoists come with a 2-year warranty, and all spare parts and technical service support are available.
All our hoists are equipped with safety switches (upper and lower limit stops).
Our electric hoists are delivered fully assembled, including crane hook, electrical panel and control unit. After purchase, only electrical connection is required for installation. Remote control is available as an optional feature.
Crane and bridge crane installation can be provided upon request.
